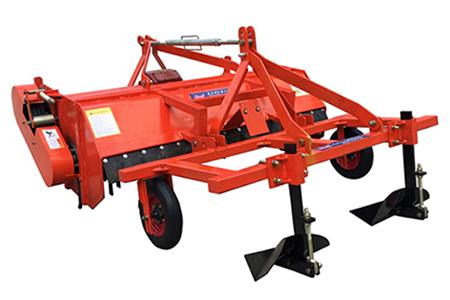

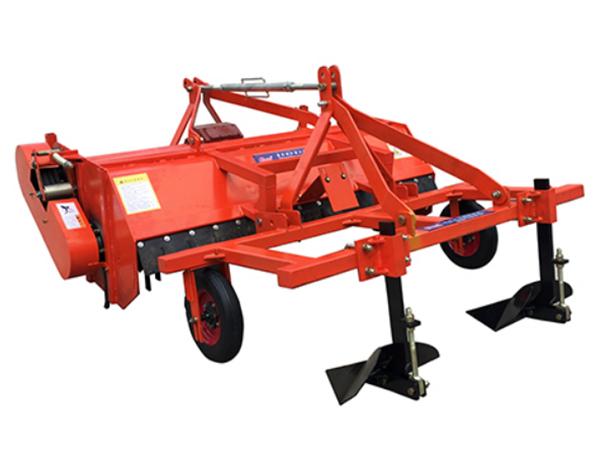

4JUF-2 Root Crop Harvester

Characteristics

• The crushing knife is arranged corresponding to the ridge, and the vines in ridge surface and bottom can be crushed at one time, leading to a high crushing rate.
• The digging depth and the penetration angle of the plough are adjustable, which can minimize the resistance when harvesting and reduce the potato injury rate.
• The row spacing when digging can be adjusted according to your needs.

Specifications

Modal	4JUF-2
Type	Suspension type
Linking pattern	Three-point suspension
Power (kW)	＞70
Total weight (kg)	765
Working breadth (cm)	180
Dimensions(L×W×H) (cm)	250×217×130
Productivity (hm2/h)	0.5
Working speed (km/h)	1.4-2.6
Axle revolving speed (r/min)	2000
Maximum turning radius of chopped mechanism (cm)	34.5
Total number of installed knives of chopped mechanism	40
Ridge spacing (cm)	85-95

Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
