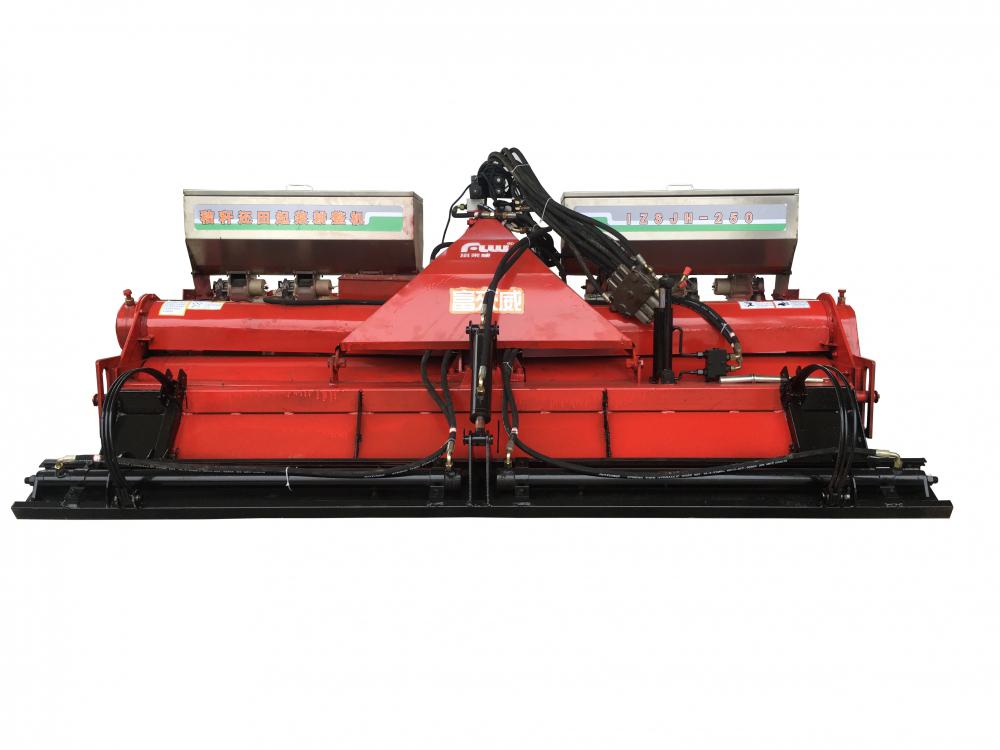

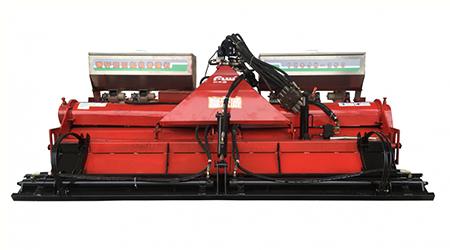

Rotavator

Rotavator, Rotary Tiller

Characteristics

Environmentally friendly: straw and soil are mixed together and then returned to the field, which reduced pollution.
Time saving: the rotavator uses multi-operation technology to complete rotary tillage, soil crushing, beating and leveling at one time, which saves your time.
Good levelling performance: the rotary tiller adopts intelligent level control system and patented soil transportation technology to improve the planeness of the field.

Specifications

Modal		1ZSJH-250
Type		Double-axle framed structure
Linking pattern		Three-point suspension
Power of the tractor(kW)		55-73.5
Drive pattern		Gear(side), hydraulic press(center)
Dimensions (L×W×H) (cm)		260×160×100
Total weight (kg)		820
Working breadth (cm)		250
Expansion breadth (cm)		430
Ploughing depth (cm)		≥22
Stirring depth (cm)		≥15
Working speed (km/h)		2.8-4.2
Axle revolving speed (r/min)		225
Tractor output revolving speed (r/min)		720
Blade type		Arc-shaped rotary blade
Blade quantity		Ⅰaxle 66, Ⅱ axle 70
Maximum turning radios of working part (cm)		22.5
Fertilizing section (optional)	The number of outlet	6
	Discharge mode	Sheave
	Fertilizing amount (kg/mu)	15-40
	Fertilizer tank capacity (L)	90
	Applicable fertilizer	Granular fertilizer

Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
