Walk Behind Rice Transplanter

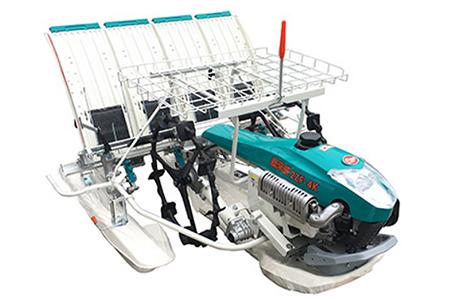

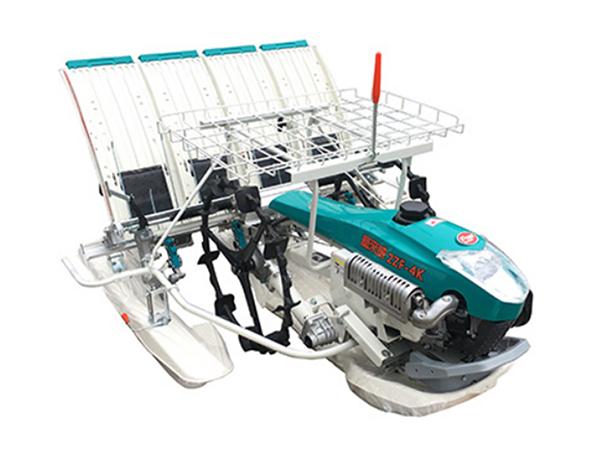

2ZF-4K Walk Behind Rice Transplanter

Characteristics

The walk behind rice transplanter is easy to operate with light weight and small size.
The machine will make transplanting operation more efficient and time-saving with a high engine output power.
The rice transplanter has a consistent transplanting depth with an automatically balanced body.
The machine is more stable and reliable with a rotary transplanting mechanism.
The trasplanter has a relatively higher reliability and durability adopting an oil bath type seedling feeder
This rice transplanter can be well adapted to muddy field operation using large diameter wheels.

Specifications

Model		2ZF-4K
Structural type		Two wheels three floating plates type
Wheel diameter (mm)		￠660
Work part structural type		Crank rocker type
Size (L×W(when working)×H) (mm)		2140×1630×910
Total weight (kg)		162
Engine	Model	YAMAHA MZ175-B-1 four-stroke single-cylinder gasoline engine
Engine	Output power(kW)/revolving speed(r/min)	3.3/3600
Shifting gear		Forward: 2 speeds Reverse: 1 speed
Capability	Working speed (km/h)	1.00-2.77
	Speed of travel on road (km/h)	2.09-5.33
	Planting width(mm)	7-37
Planting density	Number of rows	4
	Row spacing (mm)	300
	Transverse feeding seedling quantity(mm/time)	10.8/26 14/20 15.6/18
	Longitudinal taking seedling quantirty(mm)	8-17
	Transplating distance (seedling to seedling) (mm)	120 140 160 180 210
	Number of hills (each 3.3m2)	90 80 70 60 50
	Number of seedlings per hill	2-8

Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
