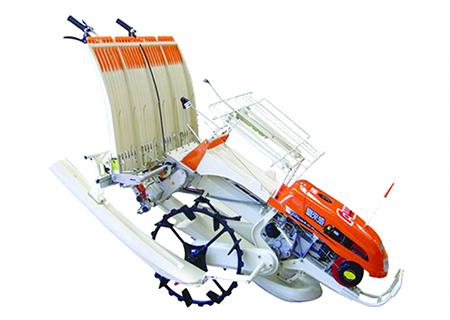

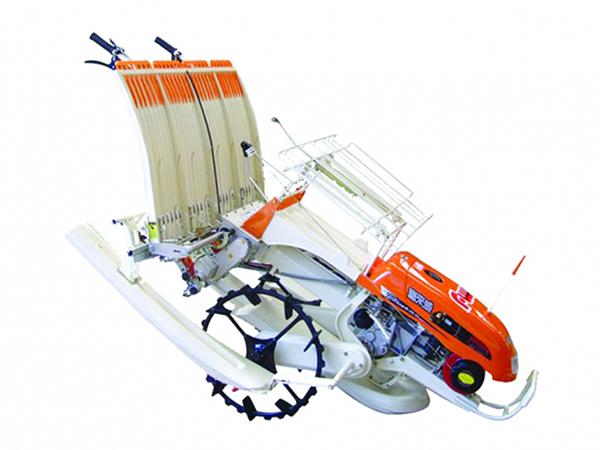

2Z-455 Walk Behind Rice Transplanter
Characteristics
- Strong power: 2.57 kW (3.5ps) gasoline engine of B&S Company is adopted.
- Adjustable transplanting distance: The transplanting distance can be changed conveniently in the range of 117-223mm by adjusting the speed setting lever and the transplanting distance adjusting lever.
- Consistent transplanting depth: Float-type hydraulic lifting mechanism and automatic balancing system makes the transplanting depth consistent;
- Reliable seedling feeding: The rice transplanter is reliable with a unique seedling feed mechanism.
- Night work available: With extra components, this transplanter can work at night and can be maintained conveniently.
Specifications
| Structural type | Two wheels three floating plates type | ||||||
| Wheel structural type | Rubber tire needle driving wheel | ||||||
| Diameter of wheel (mm) | φ612 | ||||||
| Work-part structural type | Crank rocker type/rotary type | ||||||
| Dimensions (L×W×H) (mm) | 2410×1480×880 | ||||||
| Total weight (kg) | 175 | ||||||
| Engine | Model | 93400 type/EY20-3D type four-stroke gasoline engine | |||||
| Output power (kW) | 3.5/3.6 | ||||||
| Output rpm (r/min) | 3600 | ||||||
| Shifting gear | Forward: two speeds Reverse: one speed | ||||||
| Capability | Productivity （hm2/h） | 0.10-0.23 | |||||
| Working speed (km/h) | 1.08-3.49 | ||||||
| Traveling speed on road (km/h) | ≤3.96 | ||||||
| Transplanting depth (mm) | 0-46 (adjustable) | ||||||
| Planting density | Number of rows | 4 | |||||
| Row spacing (mm) | 300 | ||||||
| Number of seedling | 3-5 (adjustable) | ||||||
| Number of hills (each 3.3m2) | 45 | 50 | 60 | 70 | 80 | 90 | |
| Transplating distance (seedling to seedling) (mm) | 223 | 200 | 180 | 146 | 130 | 117 | |
| Seedling condition | Seedling type | Seedling with soil | |||||
| Height of seedling (mm) | 100-250 | ||||||
| Leaf age (years) | 2-4.5 | ||||||
Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
