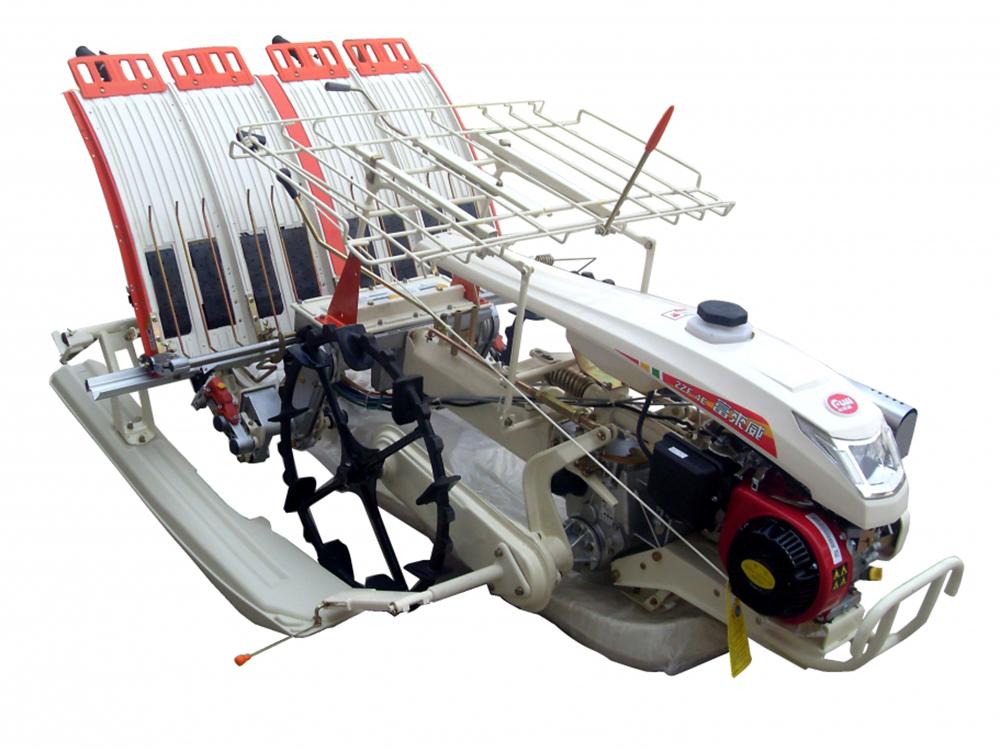

2ZF-4E Walk Behind Rice Transplanter

Characteristics

Strong power: Gasoline engine of B&S Company is adopted.
Adjustable transplanting distance: The transplanting distance can be changed conveniently in the range of 117-223mm by adjusting the speed setting lever and the transplanting distance adjusting lever.
Reliable seedling feeding: The rice transplanter is reliable with a unique structure in seedling feed mechanism.
Consistent transplanting depth: Float-type hydraulic lifting mechanism and automatic balancing system makes the transplanting depth consisten.

Specifications

1	Model			/	2ZF-4E
2	Type			/	Two wheels three floating plates type
3	Engine		Manufacturer	/	B&S
			Model	/	1062	0831
			Type	/	Four-stroke single-cylinder gasoline enginee	Four-stroke single-cylinder gasoline enginee
			Rated power/Rated revolving speed	kW/(r/min)	2.68/3600	2.57/3600
			Fuel	/	Unleaded gasoline 93 or 97＃	Unleaded gasoline 93 or 97＃
4	Dimensions (L×W×H)			mm	2430×1330×880
5	Weight			kg	170
6	Number of rows			line	4
7	Row spacing			mm	250 (center 300)
8	Transplanting distance (seedling to seedling)			mm	117 130 146 180 200 223
9	Transplanting depth			mm	10-35
10	Working speed			km/h	1.08-3.49
11	Productivity			hm²/h	0.08-0.17
12	Fuel consumption			kg/hm²	≤4.63
13	Road wheel	Front	Type	/	Rubber tire needle driving wheel
			Diameter	mm	φ612
		Rear	Type	/	/
			Diameter	mm	/
14	Structural type			/	Crank rocker type
