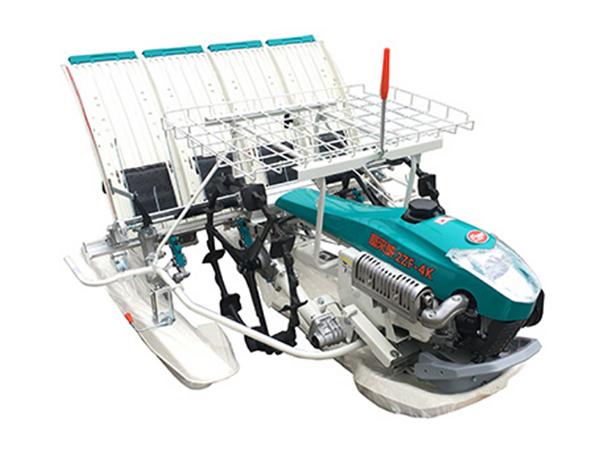

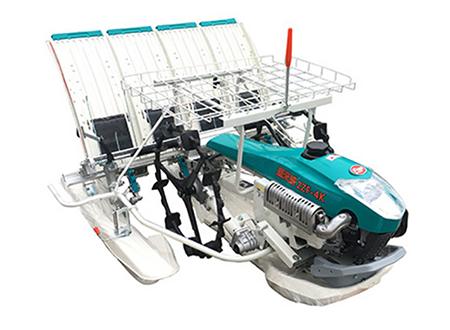

2ZF-6AK Walk Behind Rice Transplanter
Characteristics
- High power: Yamaha gasoline engine is adopted, which has high power, low emission and low noise.
- Reliable power transmission: This rice transplanter uses bevel gear to transmit power, which is efficient and reliable.
- Consistent transplanting depth: Automatic balancing system makes the transplanting depth consistent.
- Good adaptability: This rice planting machine can travel and operate well in wet or muddy field with large diameter wheels.
- High operational comfort: With ergonomics design, the height of the handle can be adjusted according to the height of the operator.
Specifications
| Model | 2ZF-6AK | |
| Type | Two wheels three floating plates type | |
| Diameter of wheel (mm) | 660 | |
| Work-part structural type | Crank rocker type | |
| Dimensions (L×W(when working)×H)(mm) | 2370*1930(2280)*930 | |
| Total weight (kg) | 195 | |
| Engine | Model | YAMAHA MZ175 four-stroke gasoline engine |
| Output power (kW)/rpm(r/min) | 3.8/3600 | |
| Shifting gear | Forward: two speeds Reverse: one speed | |
| Capability | Productivity (hm2/h) | 0.1-0.32 |
| Working speed (km/h)（non-slip） | 1.22-2.77 | |
| Speed of travel on road （km/h） | 2.09 | |
| Planting width（mm） | 4-40 | |
| Planting density | Number of rows | 6 |
| Row spacing （mm） | 300 | |
| Horizontal feeding seedling quantity(mm/time) | 15.6/18, 14/20, 10.8/26 | |
| Vertical taking seedling quantity(mm) | 8-17 | |
| Transplating distance (seedling to seedling) (mm) | 120, 140, 160, 180, 210 | |
| Number of hills (each 3.3m2) | 90, 80, 70, 60, 50 | |
| Number of seedlings per hill | 3-5 (adjustable) | |
| Seedling condition | Seedling type | Seedling with soil |
| Height of seedling (mm) | 100-250 | |
| Leaf age (years) | 2-4.5 | |
Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
