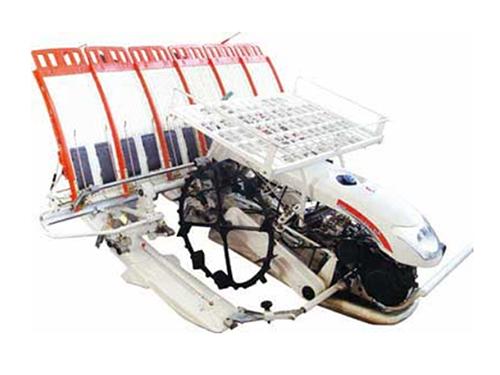

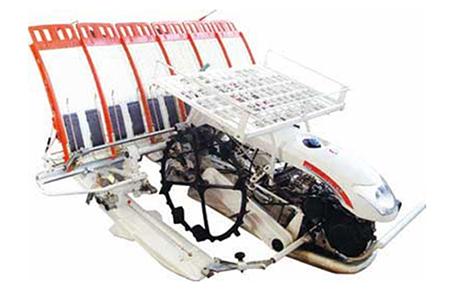

2ZF-6A Walk Behind Rice Transplanter

Characteristics

MITSUBISHI 4.2kW gasoline engine is adopted, which has high power and low fuel consumption.
Reliable power transmission: This rice transplanter uses bevel gear to transmit power, which is efficient and reliable.
Excellent performance: Float-type hydraulic lifting mechanism and optional automatic balancing system makes the transplanting depth consistent.
Good environmental adaptability: This rice planting machine can travel and operate well in wet or muddy field with large diameter wheels.
High operational comfort: With ergonomics design, the height of the handle can be adjusted according to the height of the operator.

Specifications

Model			2ZF-6A
Dimensions (L×W×H) (mm)			2180×2100×1030
Minimum ground clearance (mm)			350
Total weight (kg)			210
Engine	Model		MITSUBISHI GT600LC/YAMAHA MZ175R
	Type		Air cooling OHV gasoline engine with 4 strokes and single cylinder
	Displacement (L)		0.181/0.171
	Rated power (kW)/rpm(r/min)		(4.2/3.3)/1800
	Fuel		Unleaded gasoline (above 90#)
	Tank capacity (L)		3.2/4.5
	Starting mode		Recoil start
Moving part	Wheel adjustment		Hydraulic and automatic
	Wheel	Type	Rubber wheel
		External diameter (mm)	φ660
	Shifting gear		Forward: two speeds (planting: one speed) Reverse: one speed
Planting part	Mode		Crank-rocker mechanism
	Number of rows		6
	Row spacing (cm)		30
	Transplating distance (seedling to seedling) (cm)		12.5, 14.3,16（17.4, 20, 22.3）
	Number of hills (each 3.3m2)		80, 70, 65（60, 50,45）
	Transplanting depth (mm)		4-40
	Transverse feeding seedling quantity (time)		24, 20, 18（14）
	Longitudinal taking seedling quantity (mm)		8-17
Seedling condition	Seedling type		Pot-blanket seedling
	Leaf age (years) Height of seedling (cm)		2-4.5/10-20cm
Working speed (km/h)			1.04-2.23
Productivity (h㎡/h)			0.20-0.30 (changeable)
Fuel consumption（kg/h㎡）			≤6.0 (changeable)

Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
