Seedling Mat Transplanter | Transplanting Solution

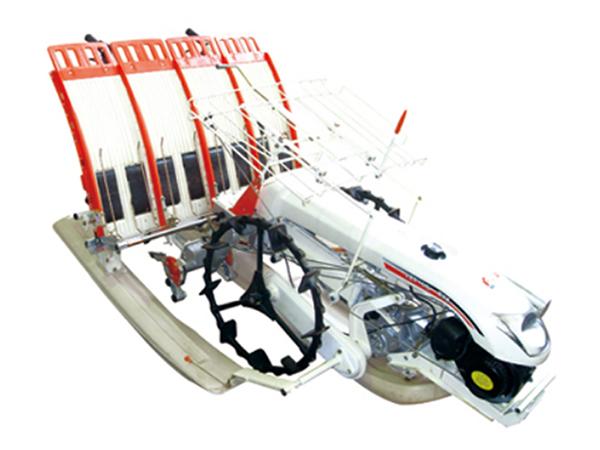

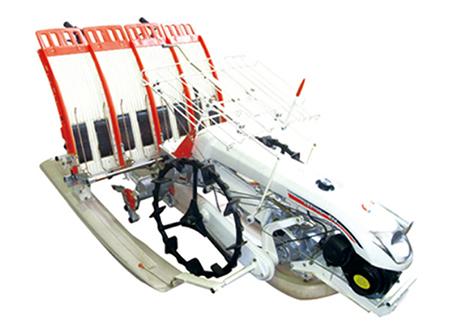

2ZF-4B(D) Walk Behind Rice Transplanter

Characteristics

High power: Yamaha MZ175 4.2h.p. gasoline engine is adopted.
Reliable seedling feeding: Adopting conveyor to transport seedlings, this rice transplanter has a high ability of sending seedlings and good consistency with the collection of seedlings;
Good adaptability: This rice planting machine adopts transverse seedling collection method and can transplant seedling mat.
High efficiency: Large wheel diameter design is adopted to improve field travel capacity and work efficiency.

Specifications

Model		2ZF-4B
Type		Two wheels three floating plates type
Engine	Model	YAMAHA MZ175
	Type	Four-stroke gasoline engine
	Rated power/revolving speed (kW/(r/min))	3.3/3600
	Fuel	Unleaded gasoline 93# or 97#
Dimensions (L×W×H) (mm)		2410×1480×900
Total weight (kg)		176
Number of rows		4
Row spacing (mm)		300
Transplating distance (seedling to seedling) (mm)		126 140 157 194 216 240
Number of hills (each 3.3m2)		83 75 66 52 47 42
Transplanting depth (mm)		10-35
Transverse seedling taking time (time)		18 20 24
Working speed (km/h)		1.15-3.78
Productivity (hm²/h)		0.11-0.25
Fuel consumption (kg/hm²)		≤4.63
Wheel	Type	Rubber tire needle driving wheel
	Diameter (mm)	φ660
Structural type		Crank rocker type (rotary)
