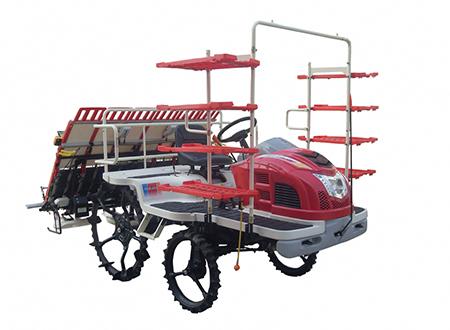

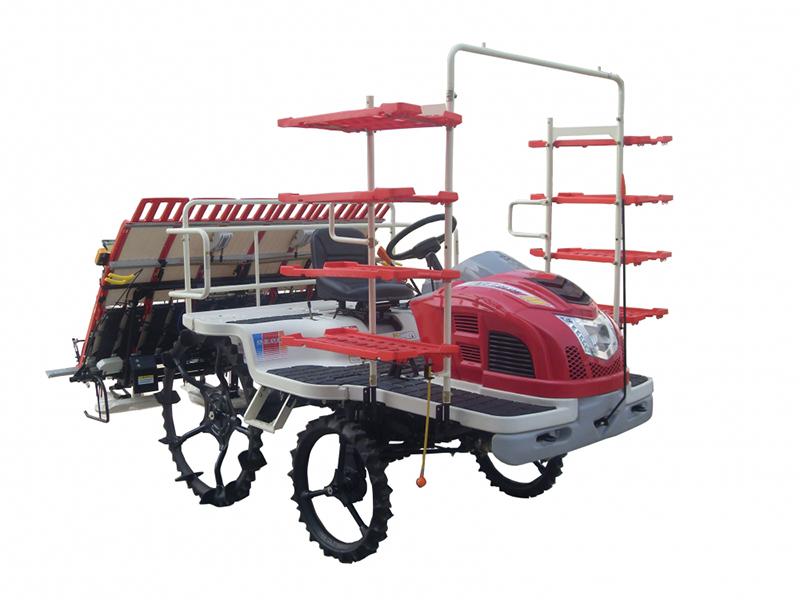

2ZG-6DM Riding Type Rice Transplanter
Characteristics
- The front wheels of 2ZG-6DK riding rice transplanter can absorb shock independently, helping you work safely and comfortably.
- With large horsepower and large fuel tank, the rice transplanter can work at a high speed for a long time, which increases work efficiency.
- Thetranplanter has low fuel consumption and is cost saving.
- The transplanting depth can be adjusted using this riding type rice transplanter.
- This agricultural machine adopts independent planting units , which makes the number of transplanting rows adjustable.
Specifications
| Model | 2ZG-6DM | ||
| Dimensions (L×W×H) (mm) | 3485×2200×2240 | ||
| Minimum ground clearance (mm) | 388 | ||
| Total weight (kg) | 720 | ||
| Engine | Manufacturer | Yanmar | |
| Model | 3TNM68-AMW | ||
| Type | Vertical water-cooling diesel engine with three cylinders and four strokes | ||
| Rated power (kW) | 12.3 | ||
| Maximum revolving speed (r/min) | 3600 | ||
| Fuel | Diesel | ||
| Tank capacity (L) | 20 | ||
| Traveling portion | Drive mode | Four-wheel drive | |
| Wheel | Front (mm) | Solid tyre φ650 | |
| Rear (mm) | Rubber lug wheel φ950 | ||
| Shifting system | Hydraulic stepless speed-change | ||
| Shifting gear | Forward: two speeds Reverse: one speed | ||
| Transplanting portion | Number of rows | 6 | |
| Transplanting mode | Rotary type | ||
| Row spacing (mm) | 300 | ||
| Transplating distance (seedling to seedling) (mm) | 220, 180, 160, 140, 120 | ||
| Number of hills (each 3.3m2) | 50, 60, 70, 80, 90 | ||
| Transplanting depth (mm) | 10-40 (6 stages) | ||
| Balancing device | Machinery | ||
| Seedling taking quantity | Horizontal (time) | 18，20 (14)，26 | |
| Vertical (mm) | 8-17 | ||
| Working speed (m/s) | 1.55 | ||
| Fuel consumption (L/mu) | 0.45 | ||
| Productivity (mu/h) | 6 | ||
