2ZG-6DMF Riding Type Rice Transplanter

Characteristics

• We adopt the fertilizer side dressing mode with intelligent control.
• Fertilization and transplanting can be carried out at the same time to save time.
• The fertilizer amount can be adjusted at a wide range according to your needs.
• Fertilizer distributor can help you fertilize evenly and use the least amount of fertilizer.

Specifications

Model				2ZG-6DMF
Dimensions (L×W×H) (mm)				3485×2200×2240
Minimum ground clearance (mm)				388
Total weight (kg)				780
Engine	Manufacturer			Yanmar
	Model			3TNM68-AMW
	Type			Vertical water-cooling diesel engine with three cylinders and four strokes
	Rated power(kW)			12.3
	Maximum revolving speed (r/min)			3600
	Fuel			Diesel oil
	Tank capacity (L)			20
Traveling	Drive mode			Four-wheel drive
	Wheel	Front (mm)		Solid tyre φ650
		Rear (mm)		Rubber lug wheel φ950
	Shifting pattern			Hydraulic stepless shifting HST
	Shifting gear			Forward: two speeds Reverse: one speed
	Transplanting mode			Rotary type
	Number of planting rolls			6
	Row spacing (mm)			300
	Transplating distance (seedling to seedling) (mm)			220, 180, 160, 140, 120
	Number of hills (each 3.3m2)			50, 60, 70, 80, 90
	Transplanting depth (mm)			10-40 (6 stages)
	Seedling taking quantity		Horizontal (time)	18, 20 (14), 26
			Vertical (mm)	8-17
Fertilizing portion	Model			2FC-6F
	Depth (mm)			40
	Seedling distance (mm)			50
	Fertilizer type			Fertilizer for side dressing
Working speed (km/h)				0-5.22
Fuel consumption (kg/hm2)				≤8.8
Work efficiency (hm2/h)				0.4

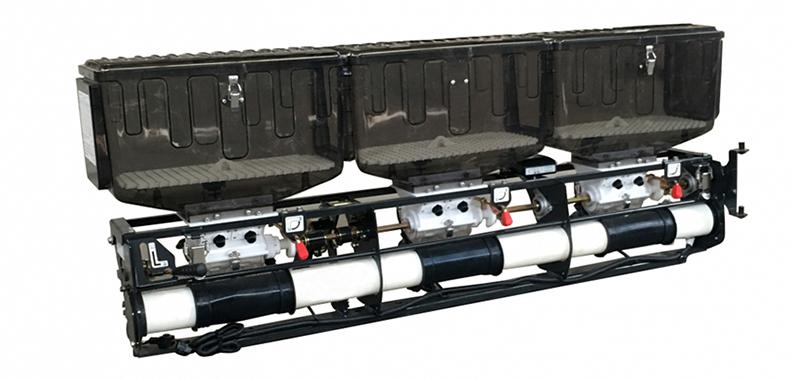

Accesories: 2FC-6F Fertilizer Distributor

Model	2FC-6F
Dimensions (L×W×H) (mm)	1680mm×400mm×560mm
Weight	55
Number of rows	6
Row spacing (cm)	30
Fertilization pattern	Side deep fertilization
Fertilization depth (mm)	40
Seedling distance (mm)	50
Applicable fertilizer	Granular fertilizer (2mm-5mm)
Work efficiency	Same as the rice transplanter
Fertilizing amount (kg/mu)	10-64
Capacity (kg)	60
Alarm for fertilizer lack	Yes
Alarm for blocking	Yes
Unit clutch	Yes

Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
