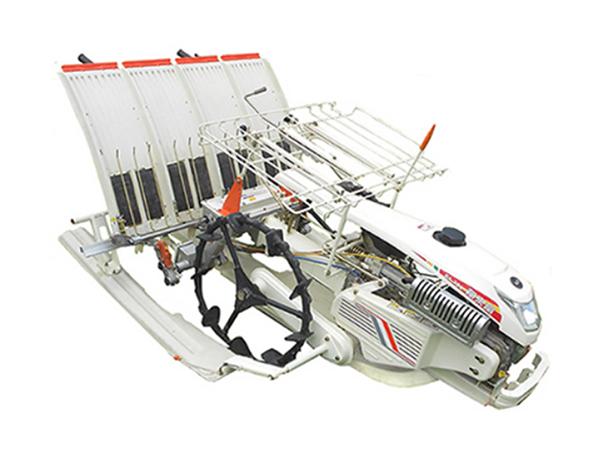

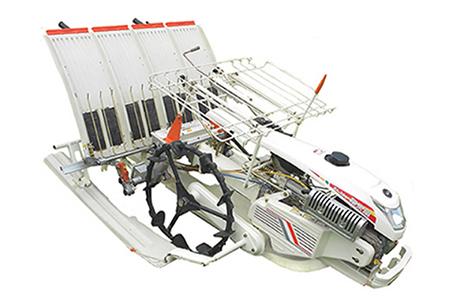

2ZF-4B(A) Walk Behind Rice Transplanter

Characteristics

Strong power: New high-power gasoline engine of American B&S is adopted, which has strong power and low fuel consumption.
Reliable seedling feeding: The seedling feeding is more accurate and reliable after the crawler and seedling press device improved twice.
Strong adaptability: The number of transverse pickup amount can be adjusted to 14, 18, 20.
High efficiency: The agricultural machine uses large wheel diameter design to improve field travel ability and work efficiency.

Specifications

Model			2ZF-4B
Type			Two wheels three floating plates type
Wheel type/diameter (mm)			Rubber tire needle driving wheel/Φ660
Work part structural type			Crank rocker type (rotary)
Dimensions (L×W×H) (mm)			2410×1480×900
Total weight (kg)			176
Engine	Model		B&S 1062 four-stroke gasoline engine
	Output power (kW)/rpm(r/min)		2.68/3600
Shifting gear			Forward: two speeds Reverse: one speed
Fuel consumption (kg/hm²)			≤4.63
Capability	Productivity (hm²/h)		0.11-0.25
	Working speed (km/h)(slipping rate 12%)		1.15-3.78
	Speed of travel on road (km/h)		≤4.25
	Transplanting depth (mm)		10-35
Planting density	Number of rows		4
	Row spacing (mm)		300
	Transverse feeding seedling quantity(mm/time)		20/14 14/20 15.5/18
	Longitudinal taking seedling quantity (mm)		8-17 (10 stages)
	Number of seedling/hole		3-5 (adjustable)
	1	Number of hills (each 3.3m2)	83 75 66
		Transplating distance (seedling to seedling) (mm)	126 140 157
	2	Number of hills (each 3.3m2)	52 47 42
		Transplating distance (seedling to seedling) (mm)	194 216 240
Seedling condition	Seedling type		Seedling with soil
	Height of seedling (mm)		100-250
	Leaf age (years)		2-4.5

Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
