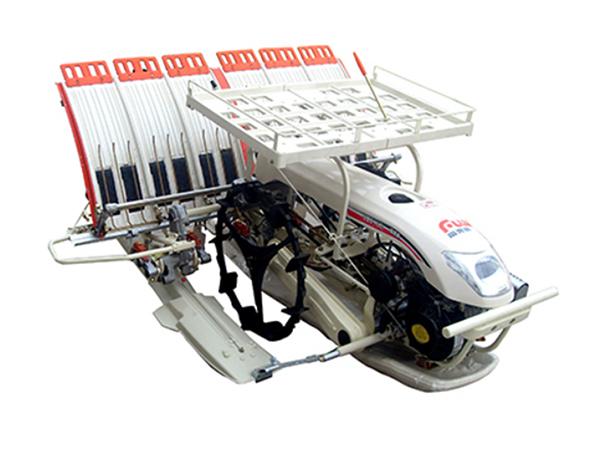

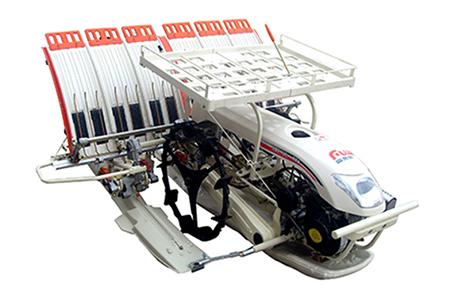

2ZF-6E Walk Behind Rice Transplanter
Characteristics
- High power: MITSUBISHI 4.2kW gasoline engine is adopted, which has high power and low fuel consumption.
- Reliable power transmission: This rice transplanter uses bevel gear to transmit power, which is efficient and reliable.
- Excellent performance: Float-type hydraulic lifting mechanism and optional automatic balancing system makes the transplanting depth consistent;
- Good adaptability: This rice planting machine can travel and operate well in wet or muddy field with large diameter wheels.
- High operational comfort: With ergonomics design, the height of the handle can be adjusted according to the height of the operator.
Specifications
| 1 | Model | / | 2ZF-6E | ||
| 2 | Type | / | Two wheels three floating plates type | ||
| 3 | Engine | Manufacturer | / | MITSUBISHI | |
| Model | / | GT600LC | |||
| Type | / | Four-stroke single-cylinder gasoline enginee | |||
| Rated power/Rated revolving speed | kW/(r/min) | 4.2/1800 | |||
| Fuel | / | Unleaded gasoline 93 or 97＃ | |||
| 4 | Dimensions (L×W×H) | mm | 2180×1850×1030 | ||
| 5 | Weight | kg | 205 | ||
| 6 | Number of rows | line | 6 | ||
| 7 | Row spacing | mm | 250 (center 300) | ||
| 8 | Transplanting distance (seedling to seedling) | mm | 125 143 160 | ||
| 9 | Transplanting depth | mm | 10-35 | ||
| 10 | Working speed | km/h | 1.04-2.23 | ||
| 11 | Productivity | hm2/h | 0.14-0.23 | ||
| 12 | Fuel consumption | kg/hm2 | ≤6.0 | ||
| 13 | Wheel | Front | Type | / | Rubber tire needle driving wheel |
| Diameter | mm | φ660 | |||
| Rear | Type | / | / | ||
| Diameter | mm | / | |||
| 14 | Structural type | / | Crank rocker type | ||
Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
