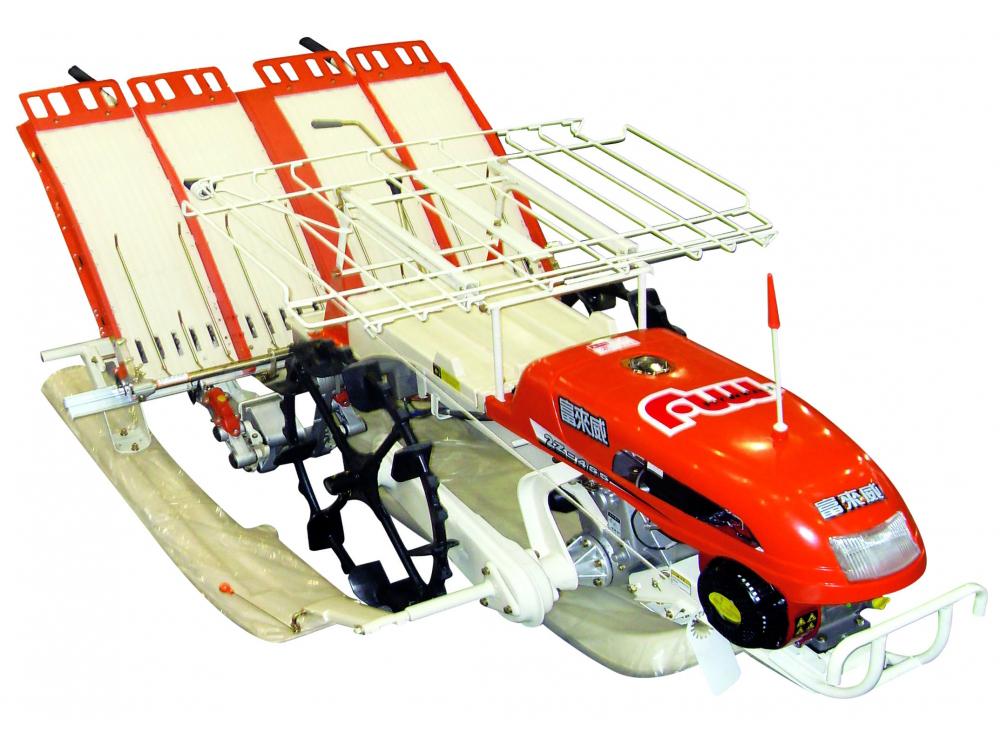

2Z-455(E) Walk Behind Rice Transplanter

Characteristics

Strong power: 2.57 kW gasoline engine of B&S Company is adopted.
Adjustable transplanting distance: The transplanting distance can be changed conveniently in the range of 117-223mm by adjusting the speed setting lever and the transplanting distance adjusting lever.
Reliable seedling feeding: The rice transplanter is reliable with a unique seedling feed mechanism.
Good adaptability: This rice transplanter can travel and operate well in wet or muddy field with large diameter wheels.

Specifications

Model		2Z-455
Type		Two wheels three floating plates type
Wheel structural type		Rubber tire needle driving wheel
Diameter of wheel（mm）		φ612
Work-part structural type		Crank rocker type/rotary type
Dimensions (L×W×H) (mm)		2410×1296×880
Total weight（kg）		170
Engine	Model	Briggs & stratton 0831 four-stroke gasoline engine
	Output power（kW）	2.57
	Output revolving speed（r/min）	3600
Shifting gear		Forward: two speeds Reverse: one speed
Fuel consumption（kg/hm2）		≤4.63
Working speed (km/h)(slipping rate 12%)		1.08-3.49
Traveling speed on road (km/h)		≤3.96
Capability	Productivity（hm2/h）	0.09-0.19
	Transplanting depth (mm)	10-35
	Number of rows	4
	Transplating distance (row to row) (mm)	300, 238, 238, 238
	Number of seedlings	3-5 (adjustable)
	Number of hills (each 3.3m2)	85(55)*	95(60)*	105(70)*
	Transplating distance (seedling to seedling) (mm)	146(223)*	130(200)*	117(180)*
Seedling condition	Seedling type	Seedling with soil
	Height of seedling (mm)	100-250
	Leaf age (years)	2-4.5
