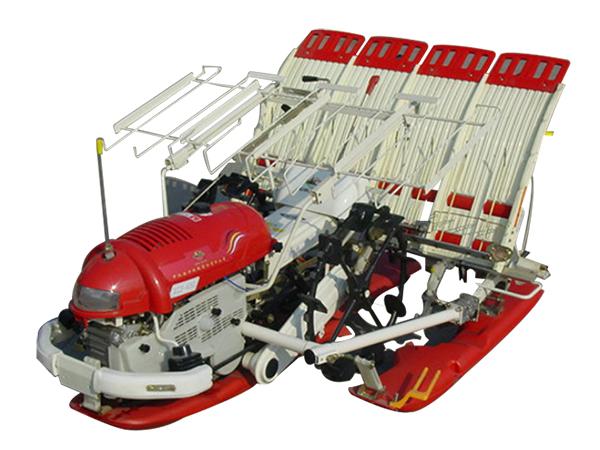

2ZF-4B Walk Behind Rice Transplanter

Characteristics

Strong power: 2.57 kW gasoline engine of B&S Company is adopted.
Adjustable transplanting distance: the transplanting distance can be changed conveniently in the range of 126-240mm by adjusting the speed setting lever and the transplanting distance adjusting lever.
Reliable seedling feeding: the rice transplanter is reliable and stable using seedling feed belt; it makes the transplanting uniform adopting a new vertical seedling feed adjusting mechanism.
High efficiency: optional seat and rotary transplanting mechanism can be equipped to improve the production efficiency.

Specifications

Model		2ZF-4B
Structural type		Two wheels three floating plates type
Walking-wheel structural type		Rubber tire needle driving wheel
Diameter of walking wheel (mm)		φ660
Work-part structural type		Crank rocker type(rotary)
Dimensions (L×W×H) (mm)		2410×1480×900
Total weight (kg)		176
Engine	Model	MZ175 four-stroke gasoline engine
Engine	Output power (kW)/revolving speed (r/min)	3.3/3600
Shifting gear		Forward: two speeds Reverse: one speed
Capability	Productivity (hm2/h)	0.11-0.25
	Working speed (m/s) (slipping rate 12％)	0.29-1.05
	Transplanting depth (mm)	10-35
Planting density	Number of rows	4
	Row spacing (mm)	300
	Number of hills (each 3.3m2)	83 75 66 52 47 42
	Transplanting distance (seedling to seedling) (mm)	126 140 157 194 216 240

Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
