Rice Hill-Drop Drilling | agricultural machinery

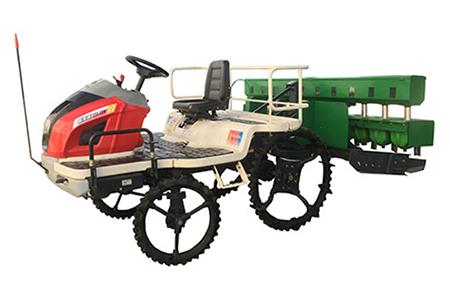

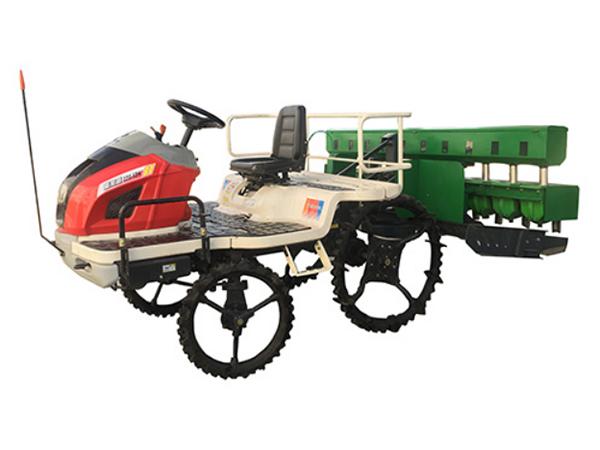

2BDZ-10 Rice Hill-Drop Drilling

Characteristics

The rice hill-drop drilling machine adopts spoon-type sowing method and have a low injury rate of seedlings;
Hydraulic profiling, ridging and ditching makes the machine works well in paddy field;
The machine will discharge seeds evenly, leading to a good ventilation and light transmission condition, which contributes to a strong lodging resistance and high productivity;
The row spacing, plant spacing and sowing quantity are all adjustable.
The rice drilling machine operates efficiently.

Specifications

Model			2BDZ-10
Dimensions (LxWxH) (mm)			3425×2490×1670	3125×2490×1670
Minimum ground clearance (mm)			388
Total weight (kg)			570	500	510
Engine	Manufacturer		Yanmar	B&S	Honda
	Model		3TNM68-AMW	3564	GX630-QKF2
	Type		Vertical water-cooling diesel engine with three cylinders and four strokes	V-shaped air-cooling gasoline engine with two cylinders and four strokes
	Rated power (kW)		12.3	10.8	11.3
	Maximum revolving speed (r/min)		3600
	Fuel		Diesel	Unleaded gasoline (93# or 97#)
	Tank capaxity (L)		20
Traveling portion	Drive mode		Four-wheel drive
	Wheel	Front (mm)	Solid tyre φ650
		Rear (mm)	Rubber lug wheel φ950	Rubber lug wheel φ900
	Shifting pattern		HST
	Shifting gear		Forward: two speeds Reverse: one speed
	Working speed (m/s)		0.52
	Balancing device		TBS hydraumatic balance/mechanical balance
Planting portion	Planting pattern		Scoop-shaped rotating in seedling taking and planting, paddy field bunch planting
	Number of rows		10
	Roll spacing (mm)		230 (center 300)
	Seedling distance (mm)		220 180 160 140 120
	Seed tank capacity (L)		80
	Planting breadth (mm)		50～80
Warning device			Charging alarm, oil pressure alarm, fuel gauge, reversing alarm, water temperature alarm	Charging alarm, oil pressure alarm, fuel gauge, reversing alarm

Relying on outstanding design and production strengths, we are one of China’s leading manufacturers of agricultural equipment. We have a factory outfitted with farm machinery production equipment, experienced workers, and expert engineers specializing in the design of farm equipment. All our agricultural equipment is designed and produced according to the farmers’ needs. Our products, including planting machines and harvesting machines are easy to operate, efficient, and durable.
